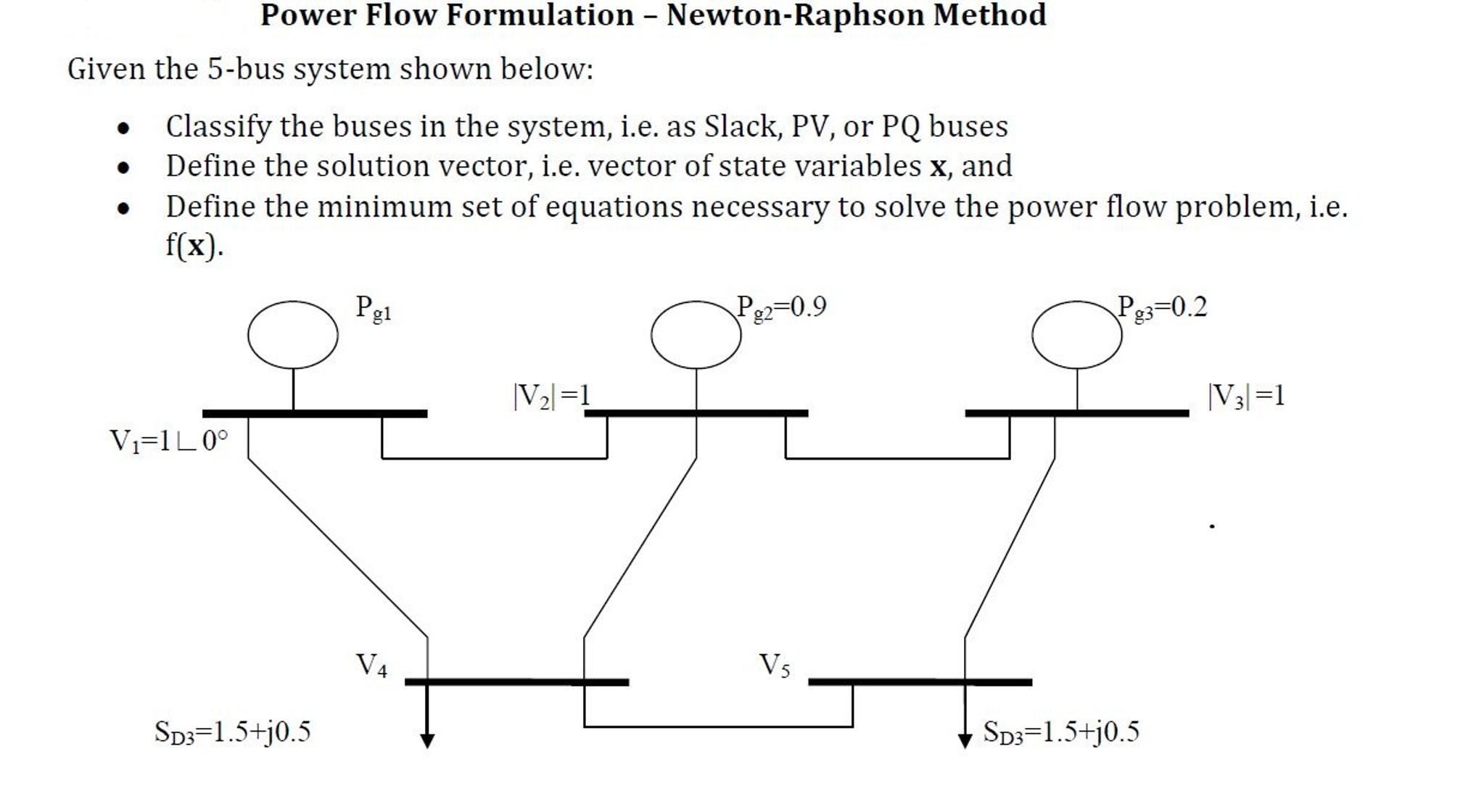

Solved Classify The Buses In System, I.e. As Slack, PV,

Understanding PV and PQ Buses in Power Systems

1. What are These "Buses" Anyway?

Ever wondered how electricity gets from power plants to your home, powering your phone, fridge, and that questionable late-night online shopping spree? Well, power systems are complex networks, and to analyze them efficiently, engineers use simplified models. Within these models, special points called "buses" represent locations where different components are connected. Think of them like electrical junctions in a giant, complicated circuit. These buses aren't literal vehicles, sadly, but rather points in the power grid where things get interesting! And amongst these interesting spots, PV and PQ buses play crucial roles.

Before we dive deep, a quick note: the goal of power system analysis is to maintain stable voltage and power flow throughout the grid. This means ensuring that you get a consistent 120V (or 230V, depending on where you live) and that the lights don't flicker every time your neighbor turns on their air conditioner. PV and PQ buses help us figure out how to make that happen.

These buses are categorized based on which parameters are known and which need to be calculated during power flow studies. These studies, often done using software, are like simulations of the power grid under different conditions, like increased demand during a heatwave or the unexpected outage of a transmission line. Knowing the characteristics of PV and PQ buses is key to setting up these simulations correctly. It's like knowing the rules of a board game before you start playing; otherwise, you'll just be moving pieces around randomly!

Power flow analysis, by the way, is all about solving equations to determine the voltage magnitude, voltage angle, real power, and reactive power at each bus in the system. Real power (P) is the actual power consumed by loads (like your appliances), while reactive power (Q) is needed to support the voltage and magnetic fields of electrical equipment (like motors and transformers). Think of real power as the beer you drink, and reactive power as the foam — you need both for a satisfying experience. Okay, maybe that's a stretch, but hopefully, you get the idea!

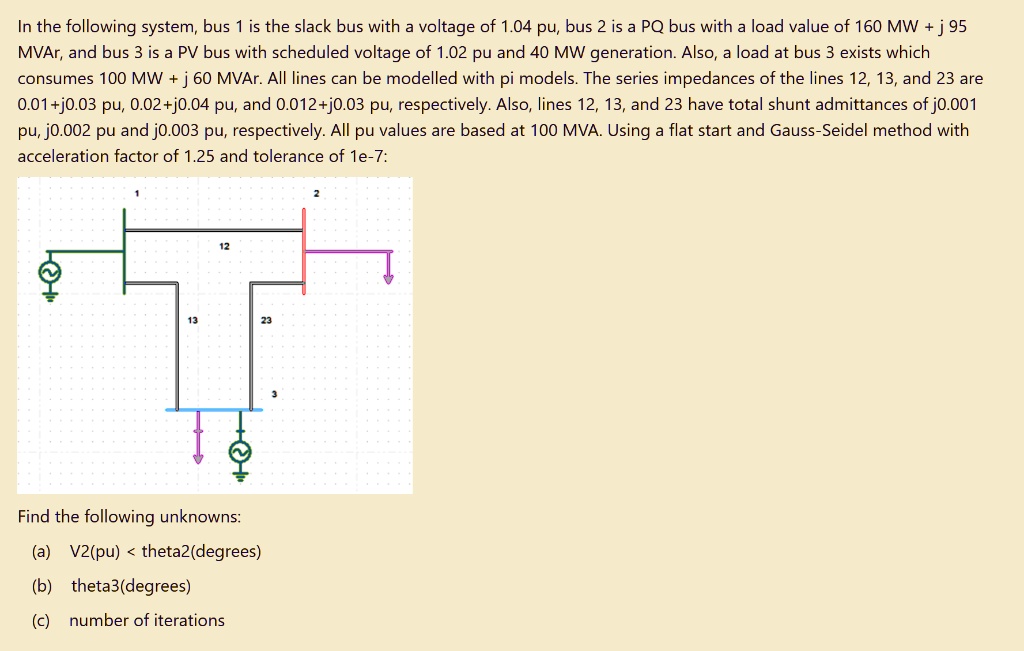

SOLVED In The Following System, Bus 1 Is Slack With A Voltage

PV Buses

2. So, What's the Deal with PV Buses?

PV buses are also known as voltage-controlled buses or generator buses. The "PV" stands for "Power-Voltage," highlighting the key parameters that are specified at these locations. At a PV bus, the voltage magnitude (|V|) and the real power generation (P_G) are known. This makes sense because PV buses typically represent locations where generators are connected. Generators are designed to maintain a specific voltage and to produce a certain amount of real power.

Imagine a power plant that's responsible for keeping the voltage steady. If the voltage starts to drop, the generator will increase its output to compensate. Similarly, if the demand for power increases, the generator will ramp up its real power output. The reactive power (Q_G) that the generator produces and the angle of the voltage () are unknown and must be calculated during the power flow study. The angle, by the way, is important because it determines the direction of power flow. A larger angle difference between two buses means more power will flow from one to the other.

Theres also a limit to how much reactive power a generator can supply. If the reactive power required exceeds this limit, the PV bus will "convert" to a PQ bus, where the reactive power becomes fixed at its maximum value, and the voltage magnitude is allowed to vary. This is a bit like a pressure release valve; when the reactive power reaches its limit, the voltage has to give a little to keep the system stable. This is a crucial aspect of power system stability and is carefully monitored by grid operators.

Think of it this way: a PV bus is like a thermostat thats set to a specific temperature. The heater (generator) will work to maintain that temperature, but it can only produce a certain amount of heat (reactive power). If the room gets too cold, the thermostat can no longer maintain the set temperature, and the temperature will start to drop. Similarly, if the reactive power limit is reached, the voltage at the PV bus will start to decrease.

Newton Raphson Load Flow Analysis For 3 Bus Network Consist Of

PQ Buses

3. What Makes a PQ Bus Tick?

PQ buses, also called load buses, are the most common type of bus in a power system. As the name suggests, PQ buses represent locations where loads are connected, such as homes, businesses, and industries. At a PQ bus, both the real power (P_L) and reactive power (Q_L) demand are specified. The voltage magnitude (|V|) and voltage angle () are unknown and need to be determined during the power flow study.

The load at a PQ bus can vary depending on the time of day, the season, and other factors. For example, electricity demand is typically higher during the day and in the summer when people are using air conditioners. The power flow study must take these variations into account to ensure that the system can meet the demand. It's like planning a dinner party; you need to know how many people are coming and what they're going to eat before you can start cooking!

Imagine a neighborhood where everyone is watching TV and running their appliances. The total power consumed by all these devices represents the load at the PQ bus. The power company needs to ensure that the voltage at this bus remains within acceptable limits, even as the load changes. This is achieved by adjusting the output of the generators and other control devices in the system.

Think of a PQ bus like a leaky bucket. The rate at which water (power) is leaking out (being consumed by the load) is known. The water level (voltage) in the bucket will depend on how much water is being poured in (generated elsewhere in the system). The goal is to keep the water level within a certain range, even as the leak rate changes. If the leak rate increases too much, the water level will drop, and vice versa.

What Is Power/load Flow Analysis?? Why Swing, PV, And PQ Buses??

Slack Bus

4. Why Do We Need a Slack Bus?

There's one more type of bus that's crucial for power flow studies: the slack bus, also known as the swing bus or reference bus. This bus serves as the reference point for the entire system. At the slack bus, the voltage magnitude (|V|) and voltage angle () are specified. The real power (P_G) and reactive power (Q_G) generation at the slack bus are unknown and are calculated during the power flow study. The angle at this bus is typically set to 0 degrees, serving as the angular reference for all other buses in the system.

The slack bus essentially makes up for any power imbalances in the system. In a real-world power system, there are always some losses in the transmission lines and transformers. These losses are not known exactly beforehand, so the slack bus effectively acts as a "balancing agent" to ensure that the total power generation equals the total power demand plus the losses. Its the unsung hero, quietly keeping everything in equilibrium.

Think of it like balancing a checkbook. You know your starting balance and all your expenses, but you might not know exactly how much interest you earned. The slack bus is like the "interest earned" figure — its calculated to make sure that your ending balance is correct. It keeps the entire power system accounting in order.

Without a slack bus, the power flow equations would be unsolvable because there would be too many unknowns. It provides the necessary anchor for the calculations, allowing engineers to analyze the behavior of the power system under various operating conditions. So, while it might not be as glamorous as the PV or PQ buses, the slack bus is an essential component of power system analysis.

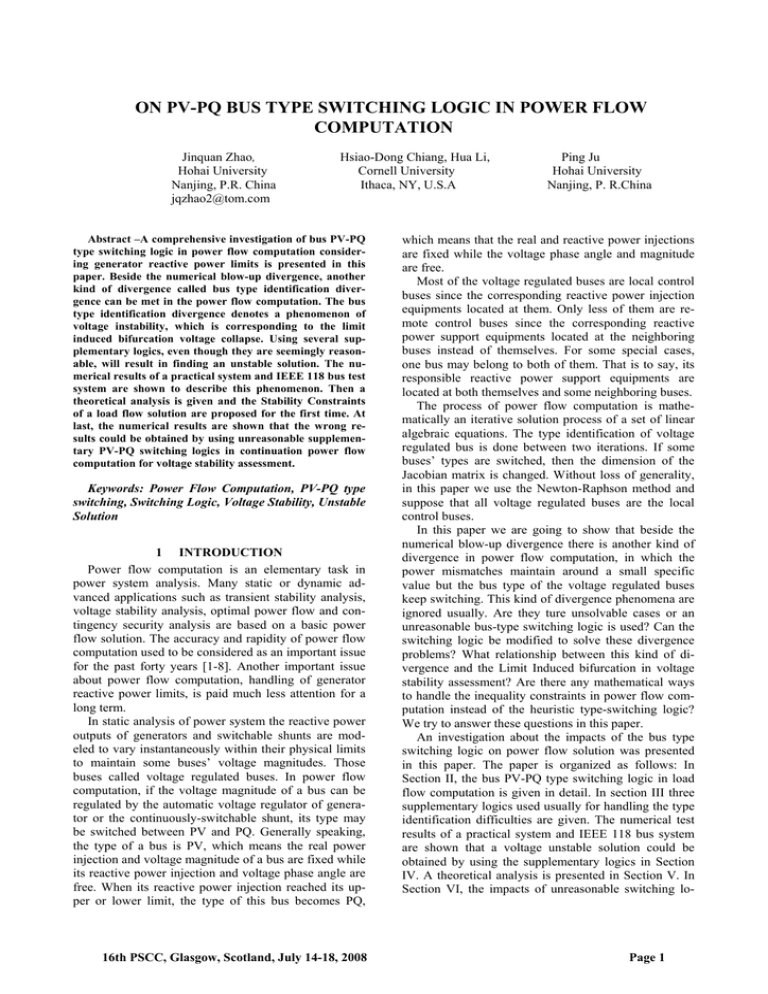

On Pvpq Bus Type Switching Logic In Power Flow Computation

Putting It All Together

5. How Do These Buses Work Together?

Think of a power system as an orchestra. The generators (PV buses) are like the musicians, each playing a specific note (voltage) at a certain volume (power). The loads (PQ buses) are like the audience, listening to the music (consuming power). The slack bus is like the conductor, ensuring that everyone is playing in tune and that the overall performance is balanced. Without the conductor, the orchestra would quickly fall apart.

Power flow studies use mathematical models and iterative techniques to solve the equations that govern the behavior of these buses. These studies are essential for planning and operating power systems, ensuring that the electricity supply is reliable, efficient, and affordable. By understanding the characteristics of PV, PQ, and slack buses, engineers can make informed decisions about how to design and control the power grid.

So, next time you flip a light switch, remember the complex network of generators, transmission lines, and buses that are working behind the scenes to bring electricity to your home. And remember that PV and PQ buses, along with the humble slack bus, are the unsung heroes of the power grid, ensuring that the lights stay on and that your favorite devices keep humming along!

It's a fascinating, if sometimes overwhelming, field, and understanding these basic concepts can help you appreciate the intricate workings of the modern power grid. Now, go forth and impress your friends with your newfound knowledge of PV and PQ buses!

PV And PQ Curves Of The 3bus System Download Scientific Diagram

Frequently Asked Questions (FAQs) About PV and PQ Buses

6. Q

A: If a PV bus reaches its reactive power limit, it effectively "converts" into a PQ bus. This means that the reactive power is fixed at its maximum value, and the voltage magnitude is allowed to vary. This can impact the overall voltage stability of the system.

7. Q

A: No, a bus is typically classified as either a PV bus or a PQ bus at any given time. However, as mentioned earlier, a PV bus can transition into a PQ bus if it reaches its reactive power limit. So, while a bus cannot simultaneously be both, it can switch between the two depending on the operating conditions.

8. Q

A: The slack bus angle is set to 0 degrees because it serves as the angular reference for the entire system. All other bus angles are measured relative to the slack bus angle. This simplifies the power flow calculations and provides a consistent framework for analyzing the behavior of the power grid.
